TIAL-R repair patch is a two-layer system consisting of irradiated high-strength polyethylene with low shrinkage degree and fiber-glass reinforced adhesive layer. The adhesive possesses high properties of shear resistance and peel strength to all types of factory polyethylene coatings. Reinforced structure adds extra resistance to shear forces.TIAL-Z defect filler is an adhesive composition with high softening point. During heating the material fills in all the surface irregularities and attains excellent adhesion to steel surface and TIAL-R repair material.TIAL-R and TIAL-Z are applied jointly for restoration of damaged factory polyethylene coatings.
TIAL-R repair patch and TIAL-Z defect filler are certified according EN 12068 standard, class C UV.
Repair materials are supplied in rolls of 30, 40 and 50 running meters.
Table 1 contains information for easiest choice of repair materials quantities. If there is no strict requirements in a project reference quantity of repair materials you can choose the following data. These figures are advisory and based on TIAL wide experience to ship heat-shrinkable coatings for different projects.
TABLE 1. TIAL-R AND TIAL-Z REPAIR MATERIALS CONSUMPTION
TABLE 2. TIAL-R AND TIAL-Z STANDARD DIMENSIONS
*Can be changed upon customer request.
BENEFITS
corrosion protection in conjunction with cathodic protection
requires no primer
fiber glass reinforcement and unique adhesive ensure high resistance to shear forces

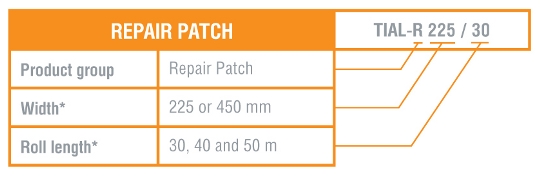

ORDERING INFORMATION:
* Standard dimensions can be changed upon request.

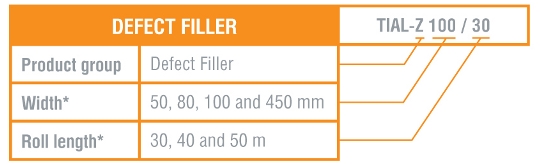

ORDERING INFORMATION:
**Standart dimensions can be changed upon request.Quantity of each product can be stated in kg or m2 according to Table 1 or according to project requirements.
